Hospital Trolley

N.F.W- HCT-201

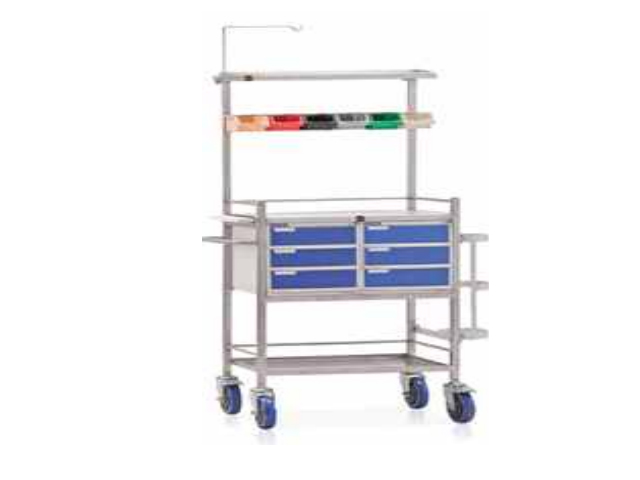

EMERGENCY CRASH CART TROLLEY Overall approximate size: 950mm Lx 450mm W x 1530mm H

  • Complete SS Frame work.
  • CNC machine pressed & double bent three Stainless Steel shelves.
  • 6 Nos.removable Polystyrene small size bins.
  • Two High-Impact Polystyrene cabinets having three drawers each.
  • First Two drawers with polymer molded utility containers of different sizes.
  • Four no s of 125mm dia. synthetic castor wheels, two of them with breaks fitted diagonally.
  • Sliding cardiac massage board, SS IV rod at rear of trolley.
  • Top shelf for storage of monitor and pulse oximeter.

Finish: Satin Mat Buff.
Optional Accessories:

  • Removable powder coated Oxygen cylinder cage.
  • Four comer buffers.
  • Removable Catheter holder made of stainless steel.


N.F.W- HCT-202

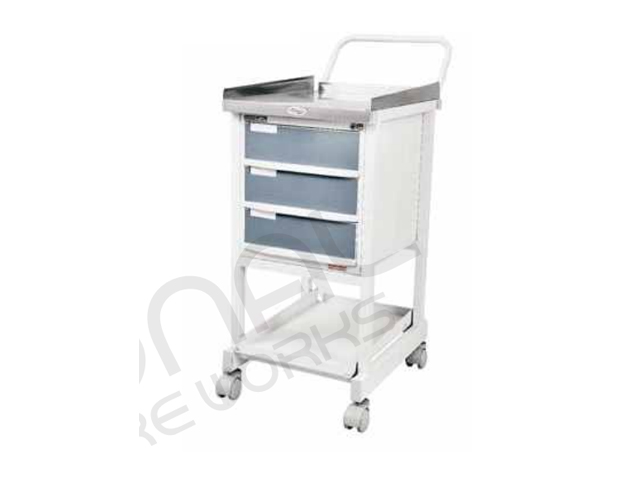

MEDICINE TROLLEY Overall approximate size: 370mm Lx 485mm W x 660mm H

  • CRCA square frame work, mounted on 50 mm dia. non-rusting castor wheels.
  • CNC machine pressed & double bent CRCA bottom shelf with three side raised edges.
  • CNC machine pressed & double bent Stainless steel top shelf with three side raised edges.
  • CNC Machine pressed MS cabinet with three drawers.
  • Push handle at rear side of trolley.
Finish:Pre-treated powder coated


N.F.W-HCT-203

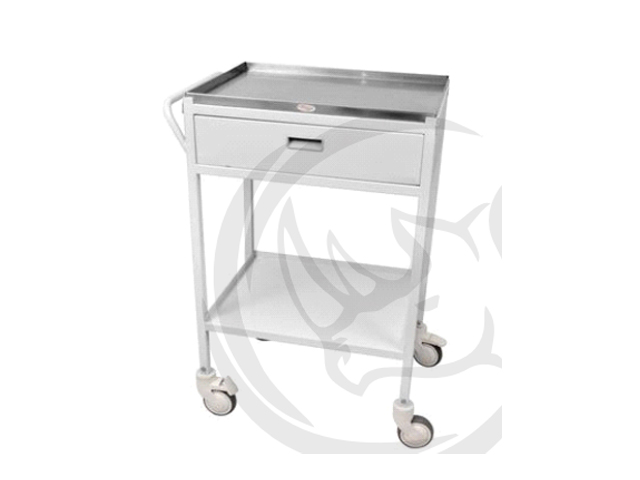

ECG TROLLEY Overall approximate size: 600mm Lx 460mm W x 915mm H

  • CRCA square frame work, mounted on 1OOmm dia. non-rusting castor wheels.
  • CNC machine pressed & double bent stainless steel top shelf (four side raised edge).
  • CNC machine pressed & double bent MS shelf at bottom of trolley.
  • Push handle at one side of trolley.
Finish: Pre-treated powder coated


N.F.W-HCT-204

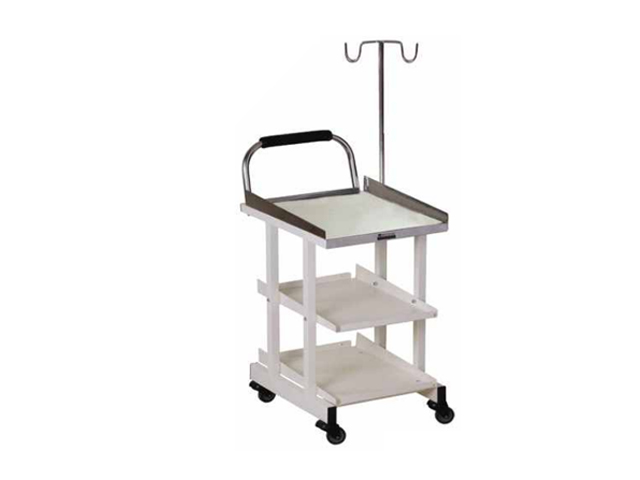

PORTABLE ECG TROLLEY Overall approximate size: 370mm Lx 485mm W x 660mm H

  • CRCA square frame work, mounted on 50mm dia. non-rusting castor wheels.
  • CNC machine pressed & double bent two CRCA shelves with three side raised edges.
  • CNC machine pressed & double bent Stainless steel top shelf with three side raised edges.
  • Push handle at rear side of trolley.
Finish: Pre-treated powder coated.

Optional model: Size:480mm Lx 560mm w x 1040mm


N.F.W • HCT • 205

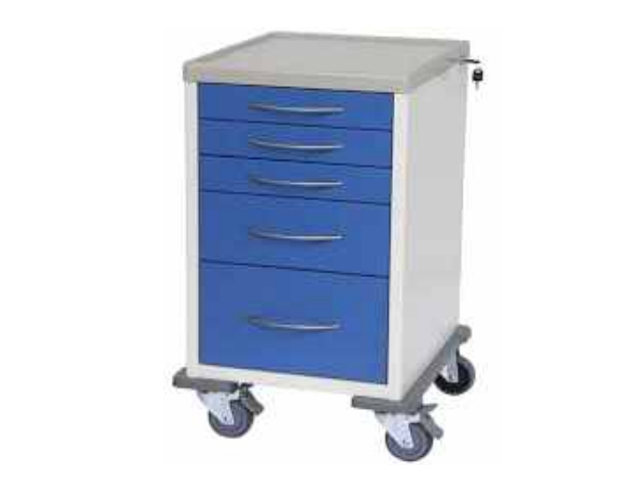

DRUG TROLLEY Overallapproximate size: 600mm Lx 460mm W x 900mm H

  • CNC machine pressed & double bent CRCA sheet cabinet
  • CNC machine pressed & bent Stainless steel top.
  • MS drawers fitted with heavy duty imported ball bearing sliding channel.
  • 125nvn dia.synthetic castor wheels, two of them with breaks, fitted diagonally.
Finish: Pre-treated powder coated.


N.F.W- HCT • 205A

DRUG TROLLEY Overall Approximate size: 600mm L.x 460mm W x 900mm H

  • CNC machine pressed & double bent CRCA sheet cabinet.
  • CNC machine pressed & bent Stainless steel top.
  • MS drawers fitted with heavy duty imported ball bearing sliding channel.
  • 125mm dia.synthetic castor wheels,
  • two of them with breaks, fitted diagonally.
Rniah: Pre-treated powder coated.


N.F.W- HCT - 2058

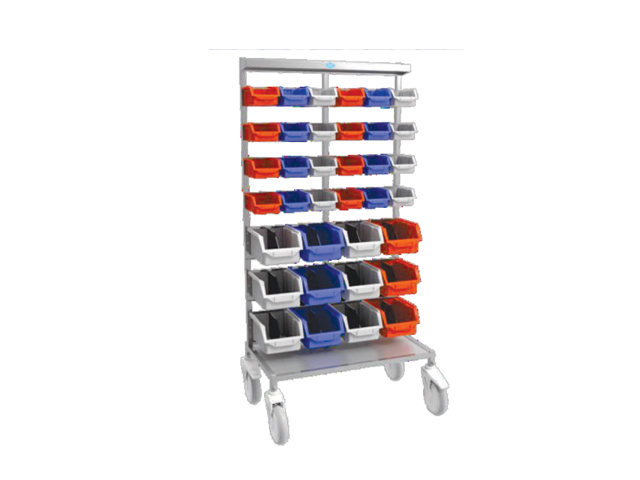

OT DRUG TROLLEY Overall approximate size: 674mm Ix 460mm D X 1540mm H

  • CRCA frame work.
  • 125mm dia. synthetic castor wheels, two of them with breaks, diagonaly fitted.
  • CNC machine pressed & double bent CRCA tray at bottom.
  • 24 Nos.of small size removable bins & 12 Nos. of medium size removable bins.
Finish: Pre-treated powder coated


N.F.W- HEC-106

THREE TIER INSTRUMENT TROLLEY Overall approximate size: 760mm Lx 500mm W x 915mm H.

  • S.S.tubular frame work.
  • CNC machine pressed & double bent Stainless Steel Three fixed shelves.
  • 125mm die castor wheels, two of them with breaks, diagonally fitted. Finish:Satin Mat Buff


N.F.W- HCT - 207

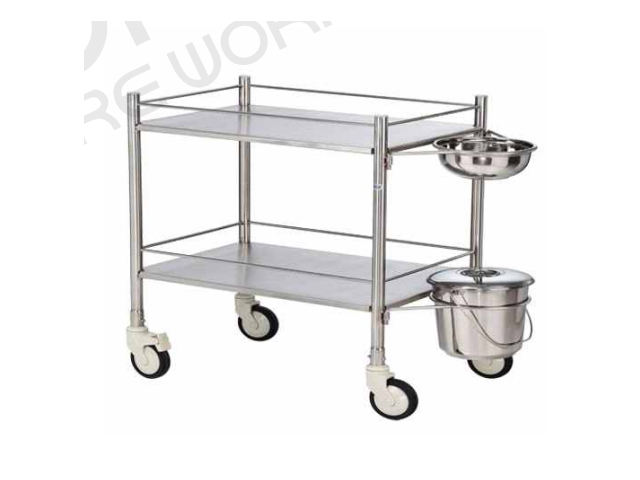

DRESSING TROLLEY Overall approximate size: 1000mm L.x 455mm W x 915mm H.
Approximate size of top shelf:680mm Lx 450mm W

  • S.S .tubular frame work .
  • CNC machine pressed & double bent Stainless steel top and bottom shelves.
  • Each shelf having four side guard rails.
  • Removable S.S .Bowl and S.S .bucket.
  • 1OOmm Dia castor wheels,two of them with breaks, diagonally fitted.
Finish: Satin Mat Buff


N.F.W- HCT • 208

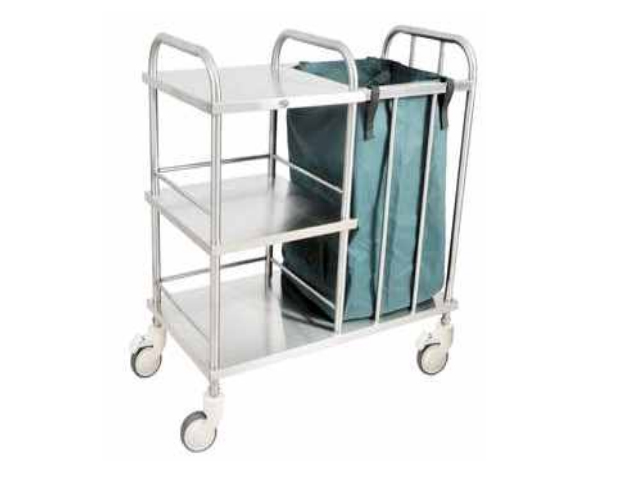

NURSING TROLLEY Overall approximate size: 900mm Lx 460mm w x 91Omm H.

  • M.S. Tubular frame work mounted on 1OOmm dia. castor wheels, two of them with breaks, diagonally fitted.
  • CNCmachine pressed & double bent fix three MS shelves.
  • 1 Pc CanvasBag.
Finish: Pre-treated powder coated


N.F.W • HCT - 209

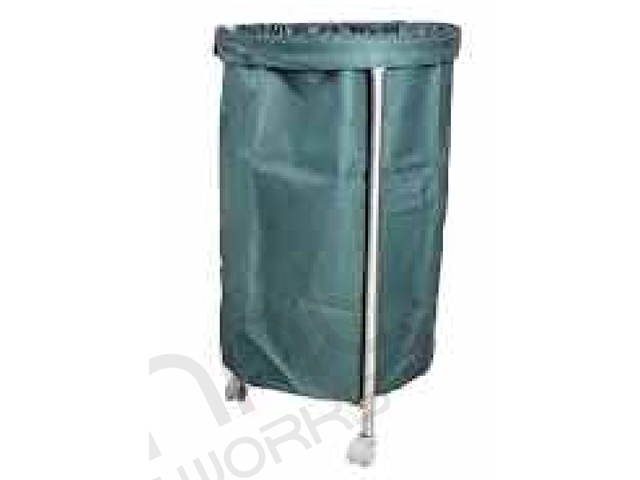

ROUND LINEN TROLLEY Overall approximate size: 510mm Dia. x 915mm H

  • Complete 55 tubular frame work mounted on 50mm dia. castor wheels.
  • 1 Pc CanvasBag.


N.F.W- HCT • 210

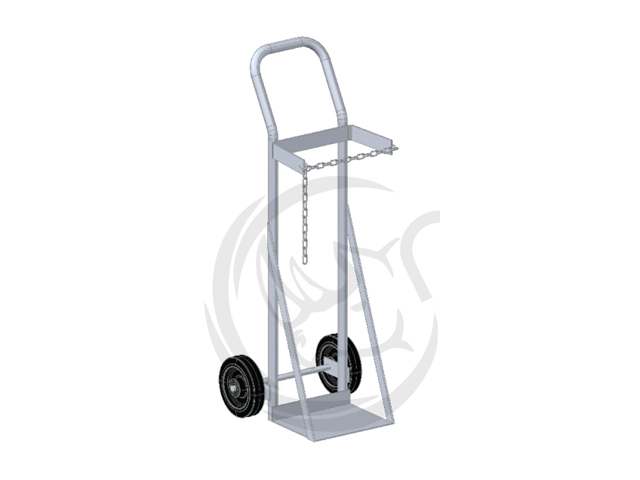

OXYGEN CYLINDER TROLLEY Overall approximate size: 210 Lx 210 W x 860 H mm 310 Lx 310 W x 1350mm H (Jumbo)

  • CRCA tubular frame work.
  • 100 mm dia. castor wheels.

Finish: Pre-treated powder coated. OptionalModel:Jumbo Cylinder trolley (N.F.W)


N.F.W • HMOT • 211

DOUBLE BAR MAYO'S TROLLEY Overall approximate size: 760 mmL x 51Omm W
Tray approximate size: 755mm Lx 505 mm w
Optional Model: SINGLE BAR MAYO'S TROLLEY
560mm Lx 400mm W x 780mm Hto 1280mm H (N.F.W • HMOT- 303A)


+
