Cabinet Locks

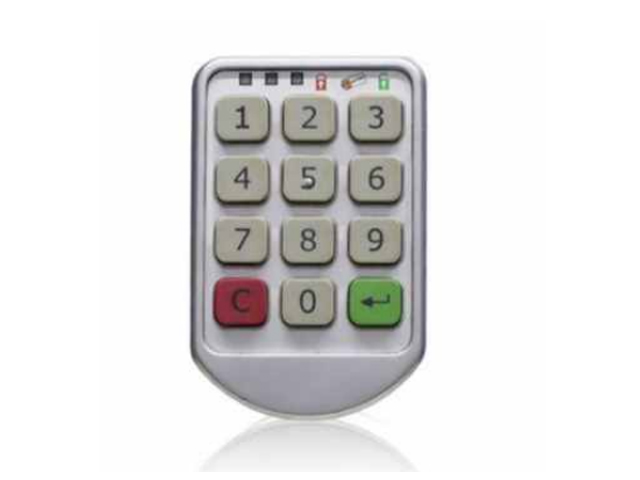

p-12d pin lock

  • 100% Programmable at-site for Public/Private use.
  • Zinc Alloy Panel & ABS lock body, with metal motorised Locking/Unlocking.
  • LED flash in locked condition only in Public mode- adds convenience,
  • Capable of 15-digit impure pin code- anti-spying features.
  • Two codes: User & Master Pan of max 8-digits.
  • Uses 4-'AAA’ Zinc/Alkaline cells, with external USB power connector.

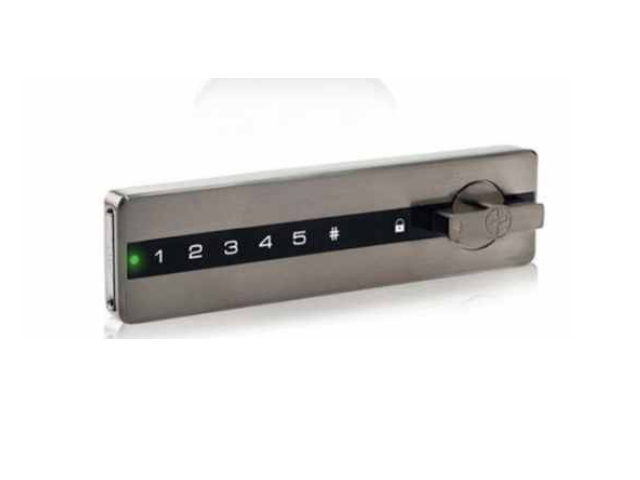

k-5d pin lock

  • Servo Motor Operated unlocking. o Knob far Lockinp/Unlocking
  • Steel Finish Zinc Alloy Construction for heavy duty applications.
  • Wet & sweat resistance capacit›ve touch I‹eypad.
  • Flexible 8-Pin User/Guest Pin & 8 dipi aI master pin.
  • Uses Lithium Button cell CR2032, replaced fram the outside panel.

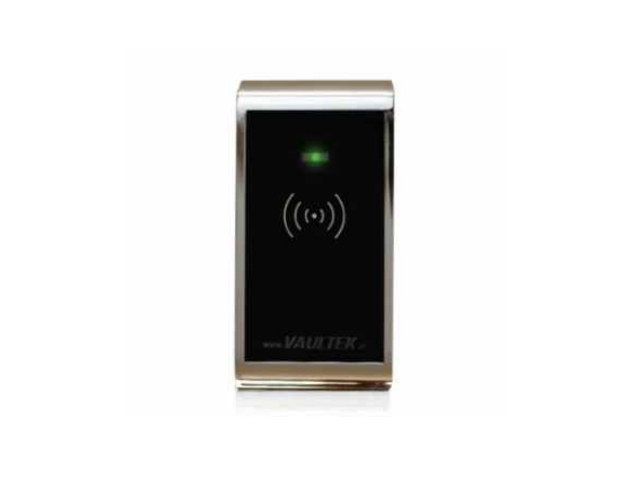

proximity lock

  • Contactless RFID based proximity lock of 125KHz,
  • Programmable to Public & Private usage in Home or Office
  • Can function in SINGLE (General) or DUAL (High Security) Custody Mode.
  • Operates with 125Khz cards, Tags or Wñstbands from distance of 1Qmm.
  • Maximum applications in lockers of Water Parks, Swimming Pool, GYM, SPA, etc.
  • Motorised Locking/Unlocking with only-'AA' Size Alkaline cells.

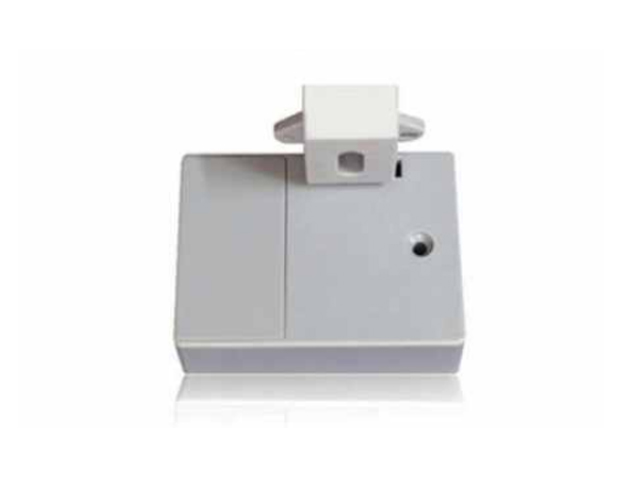

Hidden lock

  • Hidden behind 20mm wood panels & RFID basecl proximity lock of 12fiKhz.
  • Programmable ta Public & Private usage in Home or Office.
  • Can (unction in SINGLE (Generall or DUAL (High Security) Custody Mooe.
  • Operates with 125KHz Cards, Tags or Wristbands from distance of 20-mm.
  • Maximum application in Wooden Cabinets. Drawers, does not work behind metal or a mirror.
  • Hook hold type Locking/Unlocking with only 2-'AA' Size Alkaline cells,

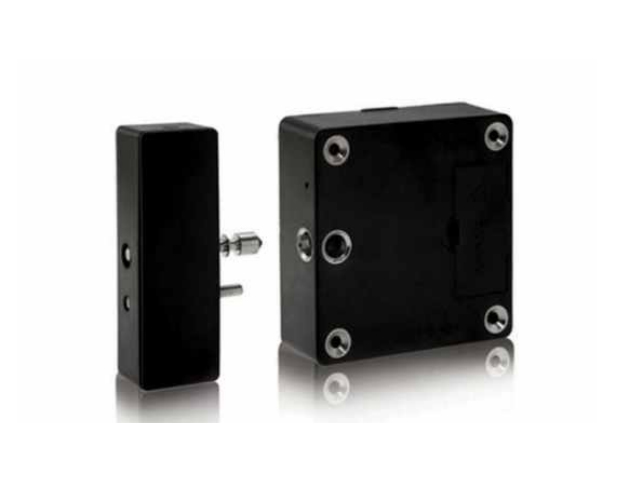

invisible smart lock

  • invisible behind 25-mm wooden panel & is Mifare based lock of 13.56MHz.
  • Programmable to Public & Private, usage in Home or Office cabinets.
  • Can function in SINGLE (General), DUAL (High Security) Custody or Special Mode.
  • Operates with 13.56MHz Mifare Cards. Tags or Wristbands from distance of 25-mm.
  • Maximum application in Wooden Cabinets, drawers, sliding doors, does not work behind metal or mirror.
  • Pin-Hook type Locking/Unlocking with only 4-'AAA' Siza Alkalina Cells.

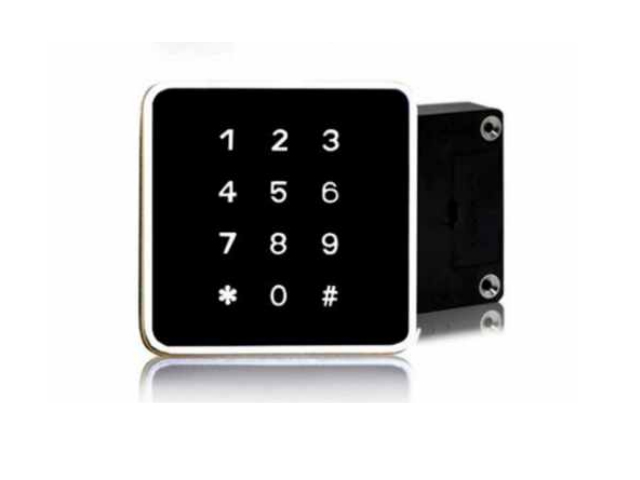

smart lock

  • Front panel with Pin+Card, Lock behind any door panel & is Mifare of 13.56Mt1z.
  • Programmable to Public & Private, usage in Home or Office cabinets.
  • Can function In SINGLE (General), OUAL (High Sacurity) Custody or Special Mode.
  • Operates with 13.56MHz Mifare Cards, Tags, Wristbands, or even Pin Number, or a combination of Pin+Card.
  • Can be programmad (a Pin or Card. or High Security in Pin & Card to unlock.
  • Pin-Hook type Locking/Unlocking with only 4-‘AAA” Size Alkaline Cells.


+
